Acknowledgements

• This project is based on the AddressBook-Level3 project created by the SE-EDU initiative.

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app’s work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

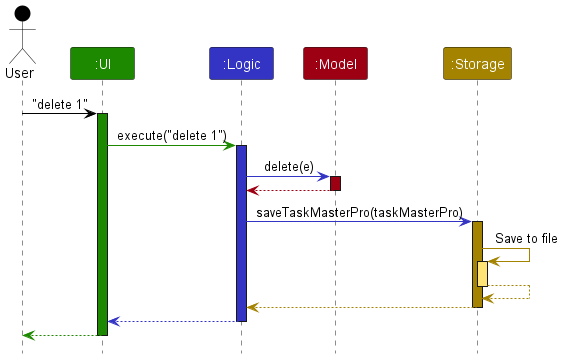

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

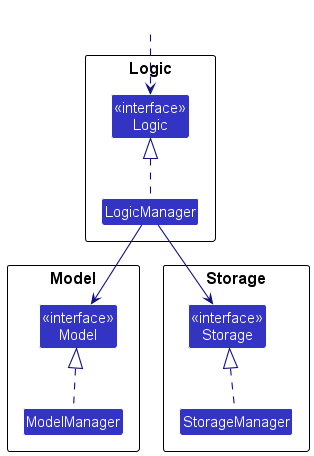

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

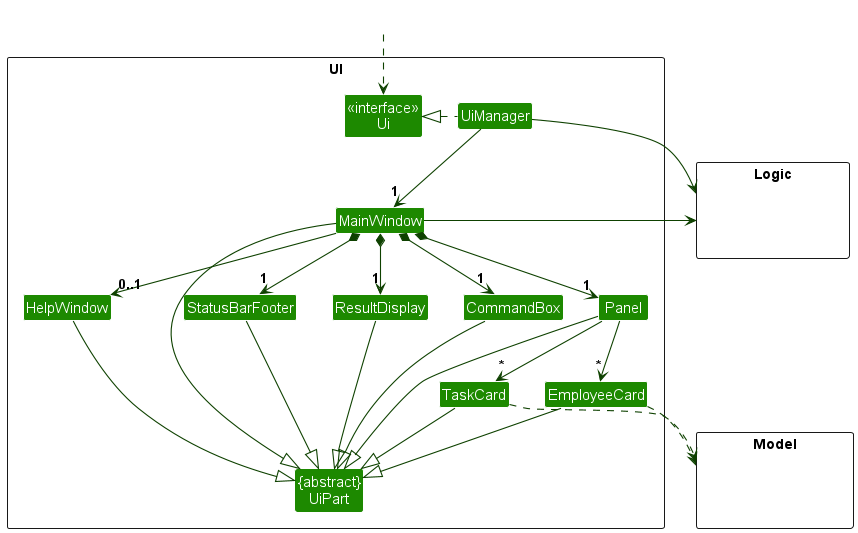

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, EmployeeListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Employee object residing in the Model.

Logic component

API : Logic.java

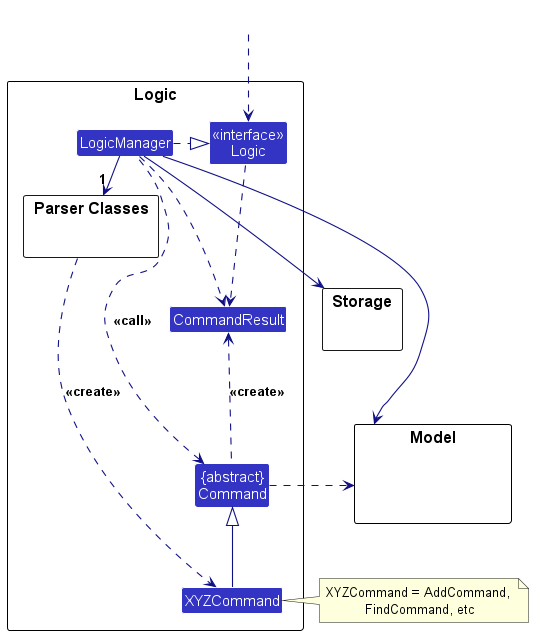

Here’s a (partial) class diagram of the Logic component:

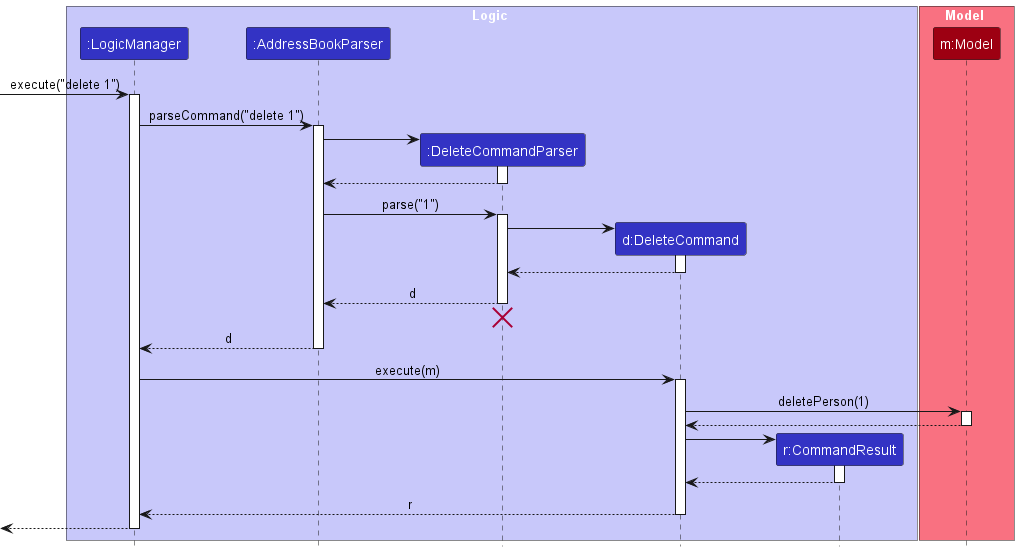

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an TaskMasterProParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a employee).
   Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

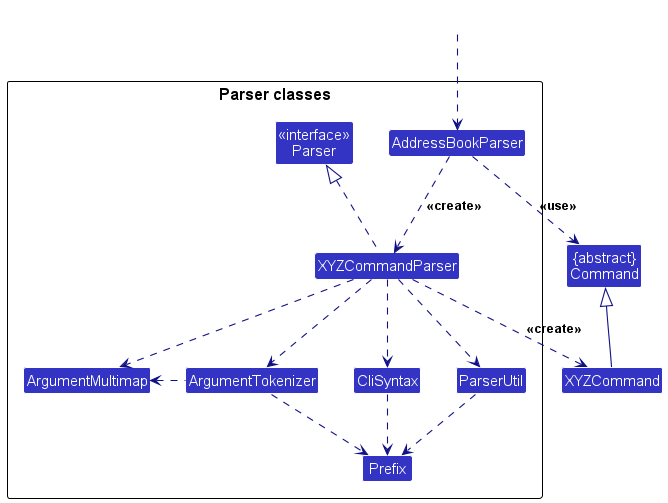

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the TaskMasterProParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the TaskMasterProParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

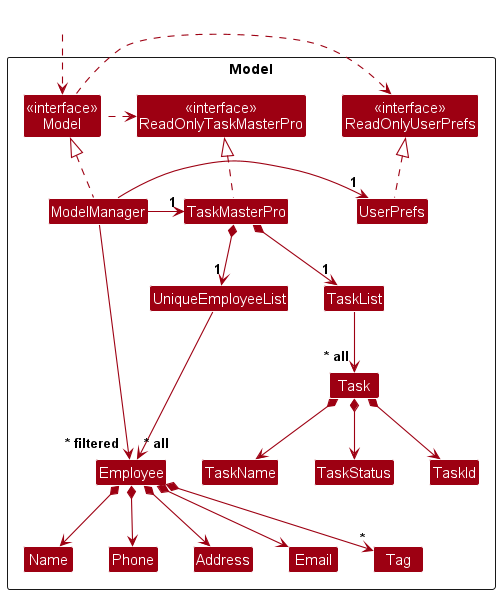

Model component

API : Model.java

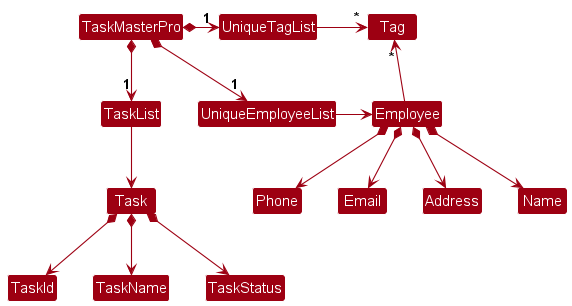

The Model component,

• stores the TaskMasterPro data i.e., all Employee objects (which are contained in a UniqueEmployeeList object) and all Task objects (which are contained in a TaskList object.
• stores the currently ‘selected’ Employee objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Employee> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores Task objects in a similar manner as with Employee objects.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

Storage component

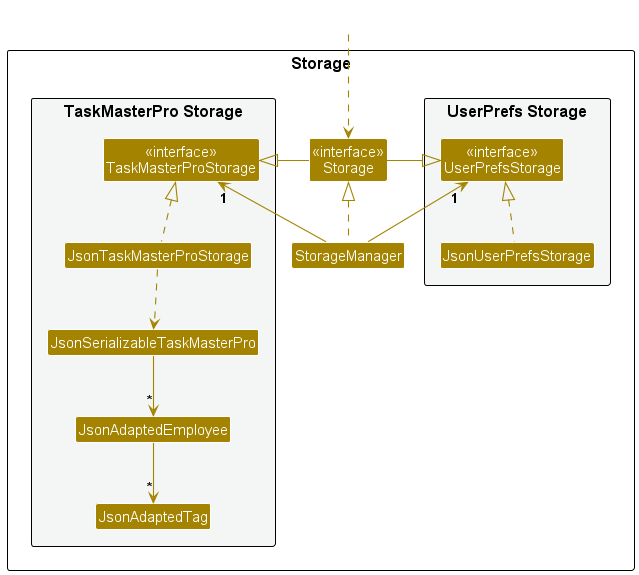

API : Storage.java

The Storage component,

• can save both TaskMasterPro data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both TaskMasterProStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.TaskMasterPro.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

[Proposed] Add/Delete task

Current Implementation

The current add/delete task feature is designed in a way such that every task has an unique TaskId to uniquely identify each task. This is done as there is no explicit constraint stating that tasks cannot have the same name, as such an identifier is required for other aspects of the TaskMasterPro (namely assigning of tasks to employees).

The unique TaskId is assigned by the TaskMasterPro automatically and is also tracked by the TaskMasterPro. It is saved in the common .json file along with other data from TaskMasterPro, and carries over across sessions.

Given below is an example usage scenario and how the add/delete task feature behaves at each step.

Step 1. The user launches the TaskMasterPro. Assume that there are no existing tasks.

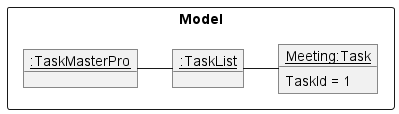

Step 2. The user enters the command task Meeting. This creates a new Task object with its TaskId automatically assigned. Assume that the TaskId value is 1.

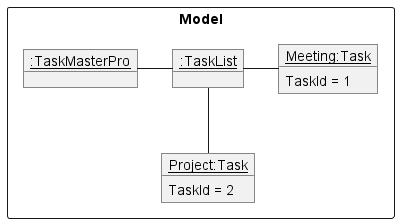

Step 3. The user enters the command task Project. This creates another new Task object with its TaskId automatically assigned. Assume that the TaskId value is 2.

Step 4. The user now enters the command deletetask 1. This will delete the task created in Step 2. as its assigned TaskId is 1.

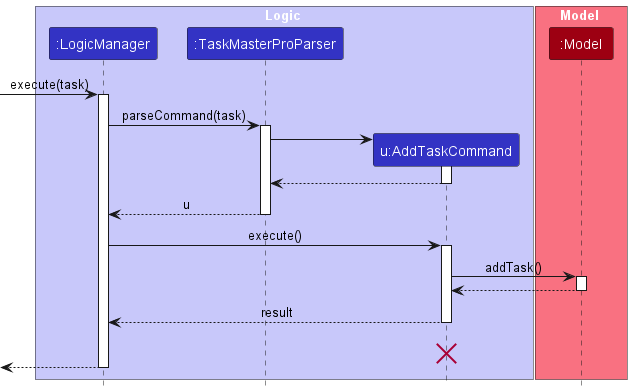

Similarly, how an add task operation goes through the Model component is shown below:

The deletetask command works similarly  —  it calls Model#deleteTask with a given TaskId and deletes the Task if it exists.

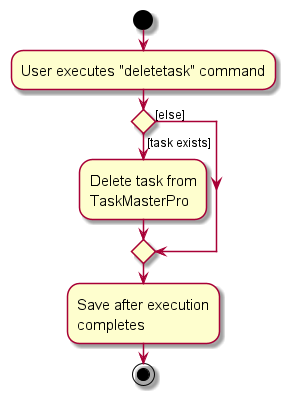

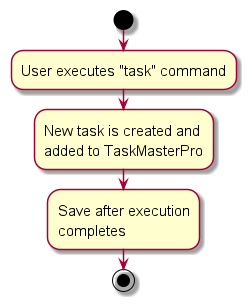

The following activity diagram summarizes what happens when a user executes a new command:

Design considerations:

Aspect: How to uniquely identify Task:

• Alternative 1 (current choice): Using of taskId.
  • Pros: Easy to implement. TaskMasterPro automatically assigns this value.
  • Cons: May be hard for users to keep track of.
• Alternative 2: Using of taskName.
  • Pros: An existing field, no additional implementations needed.
  • Cons: Impossible to uniquely identify tasks as there could be tasks with the same name.

[Proposed] Assign/Unassign task

Current Implementation

The current assign/unassign task features are designed such that they accept the ids of a task an employee as a parameter. As mentioned above in Add/Delete task a task or employee can have the same name as another task or employee so their ids are the best way to identify them.

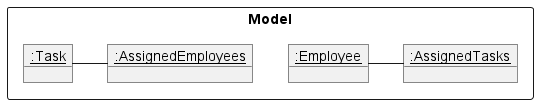

To keep track of the assignment of tasks, every employee has an immutable AssignedTasks and every task has an immutable AssignedEmployees.

This object contains a hashtable, for AssignedTasks it contains the TaskId as a key and the corresponding task as the value for that key. This is the same for AssignedEmployees which contains a hashtable where EmployeeId is a key and the corresponding employee is the value for that key. Both of these gets updated for each call to any of the two functions.

There is also a string variable in each AssignedTasks and AssignedEmployees which contains the keys of existing ids separated by an empty space. This String is stored into the JSON file with each Employee or Task so that assignments can be stored between sessions.

Given below is an example usage scenario and how the assign/unassign task feature behaves at each step.

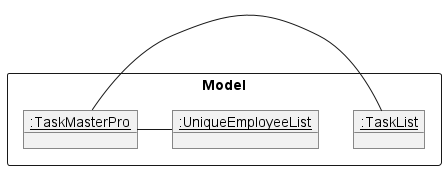

Step 1. The user launches the TaskMasterPro. Assume that there are existing employee with EmployeeId: 1 and existing task with TaskId: 2 and that both were not already assigned to each other.

Step 2. The user enters the command assigntask 2 1. This updates the AssignedTasks of the employee to put the task into the hashtable and add the string “ 2” to the existing string as well as the AssignedEmployees of the task to add the employee in the hashtable and add the string “ 1” to the existing string.

Step 3. The user enters the command unassigntask 2 1. This updates the AssignedTasks of the employee to remove the task from the hashtable and the AssignedEmployees of the task to remove the employee from the hashtable.

Both of the above command will call a function in Task and Employee which will call a function in AssignedEmployees and AssignedTasks respectively.

Step 4. The user now enters the command unassigntask 2 1 again. This will return an error as they are no longer assigned to each other to begin with.

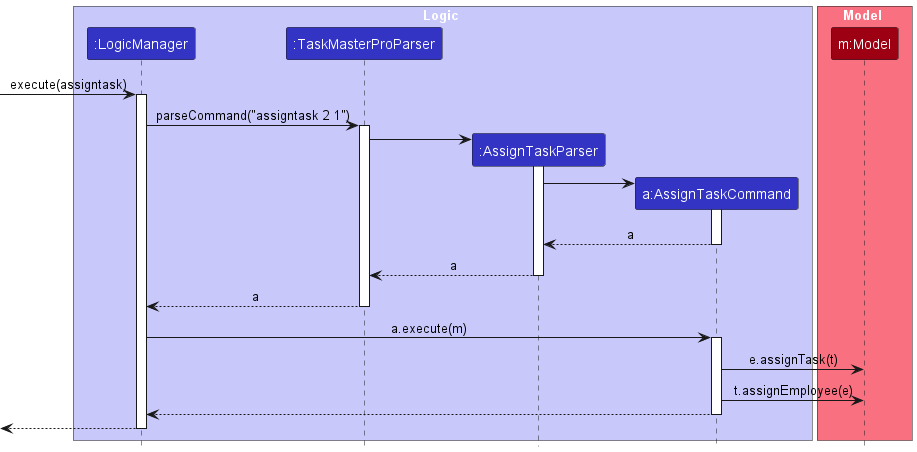

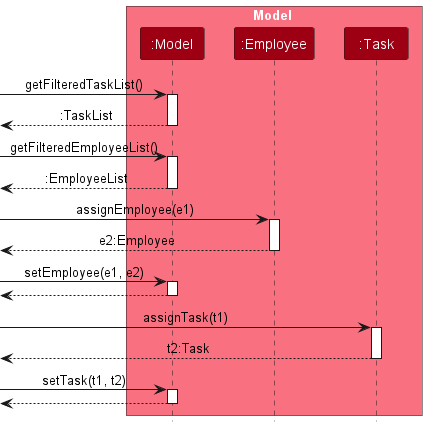

Similarly, how an assign task operation goes through the Model component is shown below:

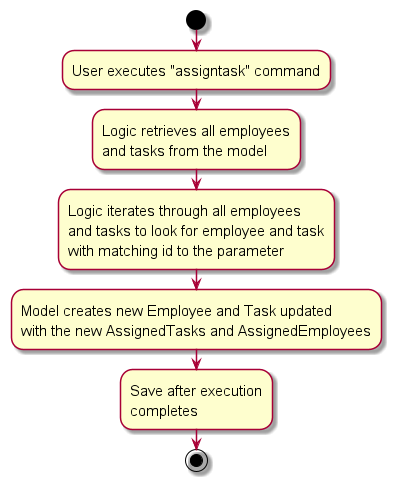

The following activity diagram summarizes what happens when a user executes a new command:

Design considerations:

Aspect: How to store AssignedTasks/AssignedEmployees into JSON:

• Alternative 1 (current choice): Using both String variable with the ids separated by spaces and a hashtable for functions to access.
  • Pros: The most straightforward approach. Both approaches described after this requires some complex functions for certain functions.
  • Cons: Whenever we update AssignedTasks or AssignedEmployees we have to update both the hashtable and the String and ensure that both are in sync.
• Alternative 2: Using only the String variable.
  • Pros: Extremely easy to understand.
  • Cons: Each time we want to access any task or employee we have to iterate through the split string and then iterate through every task/employee to compare the ids.
• Alternative 3: Using only the hashtable.
  • Pros: We can easily access the assigned tasks and employees so that we do not need to loop and compare every id each function call.
  • Cons: When we try to store or load the stored JSON data to the hashtable we have to go through quite a complicated process to do it in the right order.

[Proposed] Find task by name

Current Implementation

The current find task by name feature is designed such that it accepts a string as a parameter.

The string will be split using whitespaces to form keywords and the tasks will be filtered based on whether their names contain at least 1 of the keywords.

The search is case-insensitive and the order of the keywords does not matter.

Only full words are matched, so if the task name is “meeting with client” and the user searches for “meet”, the task will not be found.

Given below is an example usage scenario and how the find task by name feature behaves at each step.

Step 1. The user launches the TaskMasterPro. Assume that there are existing tasks with names “Project 1 Meeting”, “Client Meeting” and “Complete Project 2”.

Step 2. The user enters the command findtasks meeting. This returns “Project 1 Meeting” and “Client Meeting”.

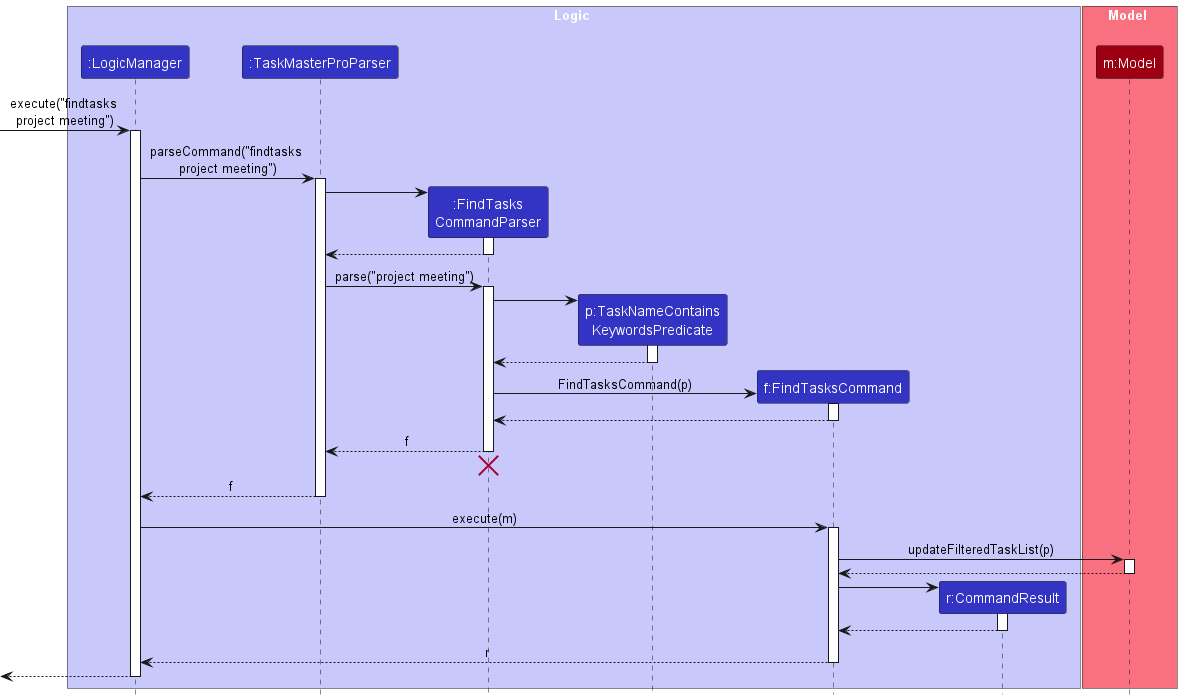

The following sequence diagram shows how a findtasks operation goes through the Logic component:

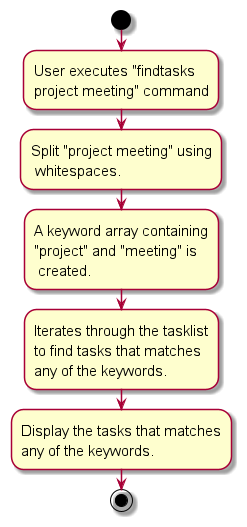

The following activity diagram summarizes what happens when a user executes findtasks project meeting:

Design considerations:

Aspect: Whether to make both find and findtasks inherit from a common parent class:

This is because both find and findtasks are similar in terms of functionality. find finds employees and findtasks finds tasks.

• Alternative 1 (current choice): Keep them separate.
  • Pros: Easier to understand and organise because currently all the classes related to employee are in the model.employee package and all the classes related to task are in the model.task package.
  • Cons: There will be code duplication because their implementations are similar.
• Alternative 2 : Make both find and findtasks inherit from a parent class.
  • Pros: Reduces code duplication.
  • Cons: May be harder to understand and organise.

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile: Managers who

• manage many employees
• prefers command line input
• comfortable with manually editing save file

Value proposition: manage employees faster than a typical mouse/GUI driven app

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority	As a …​	I want to …​	So that I can…​
* * *	new user	see usage instructions	refer to instructions when I forget how to use the App
* * *	user	add a new employee	keep a employee on record
* * *	user	delete a employee	remove entries that I no longer need
* * *	user	list all recorded employees	locate details of all employees in a list
* * *	user	add a new task	keep upcoming tasks on record
* * *	user	delete a task	remove entries that I no longer need
* * *	user	list all recorded tasks	locate details of all tasks in a list
* * *	user	assign a employee to a tasks	keep track of who is supposed to contribute to a task
* * *	user	unassign a employee from a task	update changes in manpower allocation
* * *	user	list all tasks with their assigned employees	locate details of all tasks while seeing who are assigned to them
* * *	user	mark a task as done	keep track of task completion
* * *	user	unmark a marked task	undo wrongly marked tasks
* * *	user	save current data	keep track of all data even after exiting
* * *	user	load saved data	use the data that was saved previously
* *	user	find tasks by name	quickly locate specific tasks that I remember
* *	user	find employees by name	locate an employee easily

{More to be added in the future}

Use cases

(For all use cases below, the System is the TaskMasterPro and the Actor is the user, unless specified otherwise)

Use case: Delete an employee

MSS

1. User requests to list employees
2. TaskMasterPro shows a list of employees with their ids
3. User requests to delete a specific employee in the list by their id

4. TaskMasterPro deletes the employee

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. The given id is invalid.

  • 3a1. TaskMasterPro shows an error message.

    Use case resumes at step 2.

Use case: Delete a task

MSS

1. User requests to list tasks
2. TaskMasterPro shows a list of tasks with their ids
3. User requests to delete a specific task in the list by their id

4. TaskMasterPro deletes the task

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. The given id is invalid.

  • 3a1. TaskMasterPro shows an error message.

    Use case resumes at step 2.

Use case: Assign/unassign an employee to a task

MSS

1. User requests to list employees
2. TaskMasterPro shows a list of employees with their ids
3. User requests to list tasks
4. TaskMasterPro shows a list of tasks with their ids
5. User requests to assign/un-assign a specific employee in the employee list by their id to a specific task in the task list by its id

6. TaskMasterPro assigns/un-assigns the employee to the task

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 4a. The list is empty.

  Use case ends.

• 5a. Any given id is invalid.

  • 5a1. TaskMasterPro shows an error message.

    Use case resumes at step 2/4.

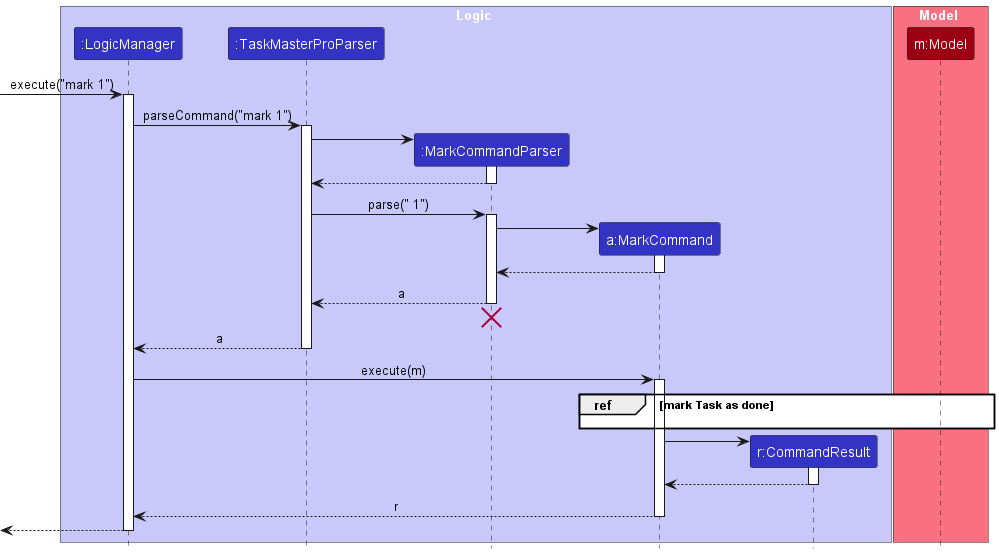

Use case: Mark a task as done

MSS

1. User requests to list tasks
2. TaskMasterPro shows a list of tasks with their ids
3. User requests to mark a specific task in the list by their id as done

4. TaskMasterPro marks that task as done/not done.

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. The given id is invalid.

  • 3a1. TaskMasterPro shows an error message.

    Use case resumes at step 2.

Note that if none of the taskId == 1, an invalid taskId exception will be thrown.

Use case: Unmark a task as not done

MSS

1. User requests to list tasks
2. TaskMasterPro shows a list of tasks with their ids
3. User requests to unmark a specific task in the list by their id

4. TaskMasterPro unmarks that task as not done.

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. The given id is invalid.

  • 3a1. TaskMasterPro shows an error message.

    Use case resumes at step 2.

Note that if none of the taskId == 1, an invalid taskId exception will be thrown.

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 11 or above installed.
2. Should be able to hold up to 1000 employees without a noticeable sluggishness in performance for typical usage.
3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
4. Should be able to handle a corrupted data file without crashing.

{More to be added}

Glossary

• Mainstream OS: Windows, Linux, Unix, MacOS
• Private contact detail: A contact detail that is not meant to be shared with others

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder

   2. Double-click the jar file or enter the command java -jar taskmasterpro.jarin a command prompt. Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

3. Loading from save file

   1. If an existing save file exists, taskmasterpro will load from it. In the event an error occurs (invalid data or no save file), it will launch with sample data instead.

Adding an employee

1. Adding a employee

   1. Prerequisites: No employees are currently added.

   2. Test case: add n/Test p/98765432 e/test@gmail.com a/Kent Ridge
      Expected: A new employee with the corresponding details is added.

   3. Test case: add n/Test p/98765432 e/test@gmail.com a/Kent Ridge
      Expected: Employee is not added as an employee with the same name already exists. Error details shown in the status message.

   4. Other incorrect delete commands to try: add, add n/, ...
      Expected: An error message will show up on the status message saying which fields are missing. Note that the fields n/, p/, e/ and a/ are necessary to add a new employee.

Deleting an employee (note that this is similar for tasks)

1. Deleting a employee while all employees are being shown

   1. Prerequisites: List all employees using the list command. Multiple employees in the list from employee ID 1 to 5.

   2. Test case: delete 1
      Expected: Employee with the ID 1 is deleted from the list. Details of the deleted contact shown in the status message.

   3. Test case: delete 0
      Expected: No employee is deleted. Error details shown in the status message. Status bar remains the same.

   4. Other incorrect delete commands to try: delete, delete x, ... (where x does not belong to any employee ID)
      Expected: Similar to previous.

Adding a task

1. Add a new task

   1. Test case: task New Task
      Expected: A new task with the name “New Task” is added.

   2. Test case: task
      Expected: Task is not added due to missing task name. Error details shown in the status message. Status bar remains the same.

Saving data

1. Dealing with missing/corrupted data files

   1. _In the event there is no save file or corrupted data in the save file, it will launch with sample data instead.

Planned Enhancements

Given below is the list of our planned enhancements. Our team size is 4, allowing us to have 8 enhancements in total.

1. Add validity checking for manual editing of ID: The current implementation allows ID to be manually set to negative values in the JSON file. While this does not break other commands, this should not be allowed and will be fixed in a future iteration.
2. Commands can be difficult to use due to inability to see both employees and tasks at the same time: The current implementation only allows for 1 view at once. To increase efficiency, the UI will be split into 2 separate windows, one for employees and one for tasks.
3. Marking a task as done could be more meaningful: After marking a task that has been assigned to employees, there should be indications to show that the task has been completed under the employee’s list of tasks.
   1. For example: 4: pe-dry-run (Completed).
4. Email domains currently accept dubious values: More constraints will be added to the email field to forbid dubious email domains.
   1. For example, the email domain testingthetopleveldomaincom will be forbidden.
5. Certain error messages could be more specific: The current error message for assigning/unassigning task The Task ID provided is invalid is too general. This will be changed to mention why exactly the command failed. For example: Unassign task failed. The employee does not have the given task ID.
6. Same name employees should be allowed to be added: While it is feasible for multiple different employees to have the same name, the current implementation does not allow same name employees to be added. This will be changed in a future enhancement.
7. The format for assigntask and unassigntask can be confusing: The current format for both the commands are command taskid employeeid. This can be confusing as both taskid and employeeid refer to integers and can be easily mixed up. The use of prefixes will be added in the future to differentiate between the two different IDs.
8. ID of deleted employees or tasks are not reused: While it is unlikely that the number of employees or tasks hit the integer limit, a future enhancement will account for this possibility and reuse unused IDs should the number reach close to the limit.
